Ukázka, jak odesílat data z MCU ESP32 se senzorem BME280 do Raspberry Pi na vyžádání.
Odesílání dat z MCU s využitím MQTT je založeno na základním zapojení ESP32 se senzorem teploty, tlaku, výšky a vlhkosti BME280, které je uvedeno v předchozím návodu. Pro úspěšné odesílání dat s využitím protokolu MQTT jsou nutné prerekvizity:
- Něco si načíst o MQTT.
- Mít nainstalované a zprovozněné Raspberry Pi.
- Nainstalovaný MQTT na Raspberry Pi.
- Výchozí příklad odesílání dat z ESP32 do RPi.
Motivace

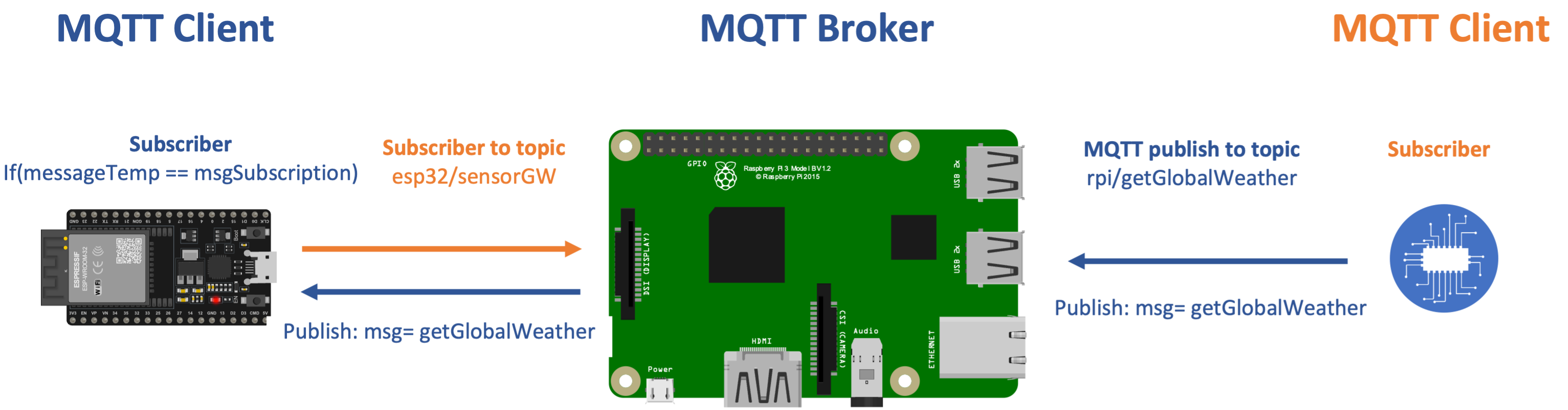

Za normálního stavu se data odesílají kontinuálně z ESP32 na určený MQTT topic. Raspberry Pi naslouchá na tomto topicu a přijímá zprávy odeslané z ESP32. Jak nastavit frekvenci odesílání dat? V ESP32 se dá nastavit prodleva pomocí funkce delay(). Co, když máme několik MCU. To se musí nastavit frekvence odesílání dat pro každé zvlášť? Asi by se dalo z centrálního počítače odesílat na každé MCU hodnota pro delay(), která by se mohla uložit do SPIFFS. Co kdyby se frekvence odečítání dat řídila přímo z řidícího počítače - Raspberry Pi. Tzn., že RPi by odesílalo zprávu, kterou by přijmulo MCU a na základě správnosti zprávy by se odeslali dat z MCU na určený topic.
Kód Python
import paho.mqtt.client as mqtt
import time
from time import gmtime, strftime
from datetime import datetime
def on_connect(client, userdata, flags, rc):
global flag_connected
flag_connected = 1
client_subscriptions(client)
print("Connected to MQTT server")
def on_disconnect(client, userdata, rc):
global flag_connected
flag_connected = 0
print("Disconnected from MQTT server")
# a callback functions
def callback_esp32_getGlobalWeather(client, userdata, msg):
getData= msg.payload.decode('utf-8')
print('ESP BME280 current data: ', getData)
def client_subscriptions(client):
client.subscribe("esp32/#")
def on_publish(client, userdata, mid):
print("Message published")
def main():
client = mqtt.Client("rpi_clientSub") #this should be a unique name
client.username_pw_set(MQTT_USER, MQTT_PASSWORD)
flag_connected = 0
client.on_connect = on_connect
client.on_disconnect = on_disconnect
client.message_callback_add('esp32/sensorGW', callback_esp32_getGlobalWeather)
client.connect(MQTT_SERVER,1883)
client.on_publish = on_publish
# start a new thread
client.loop_start()
client_subscriptions(client)
print("Client setup complete.")
while True:
time.sleep(5)
if (flag_connected != 1):
print("Waiting for message ...")
try:
msg ="getGlobalWeather"
pubMsg = client.publish(
topic='rpi/getGlobalWeather',
payload=msg.encode('utf-8'),
qos=0,
)
pubMsg.wait_for_publish()
print("Message was sent: ")
print(pubMsg.is_published())
except Exception as e:
print(e)
if __name__ == '__main__':
print('MQTT to bridge')
main()
V cyklu while se odesílá na topic rpi/getGlobalWeather zpráva v proměnné msg. Kód v cyklu se vykonává každých 5 vteřin - time.sleep(5).
Kód ESP32
#include <WiFi.h>
#include <PubSubClient.h>
#include <Wire.h>
#include <Adafruit_Sensor.h>
#include <Adafruit_BME280.h>
#include <WiFi.h>
#include <ESPAsyncWebServer.h>
#include <ESP32AnalogRead.h>
#include <math.h>
#include <SPIFFS.h>
#include <ArduinoJson.h>
#define SEALEVELPRESSURE_HPA (1013.25)
#define CORRECT_TEMP (0.40)
// WiFi
const char* ssid = "XXX"; // Your personal network SSID
const char* wifi_password = "XXXXXXXXX"; // Your personal network password
// MQTT
const char* mqtt_server = "192.168.50.51"; // IP of the MQTT broker (RPi)
const int mqtt_server_port = 1883;
const char* mqtt_username = "XXX"; // MQTT username
const char* mqtt_password = "XXXXXXXXX"; // MQTT password
const char* clientID = "data_weatherviot"; // MQTT client ID
const char* topicSubscription = "rpi/getGlobalWeather";
const char* topicPublish = "esp32/sensorGW";
const char* msgSubscription = "getGlobalWeather";
long lastMsg=0;
WiFiClient wifiClient;
PubSubClient client(mqtt_server, mqtt_server_port, wifiClient);
AsyncWebServer server(80);
Adafruit_BME280 bme; // I2C
ESP32AnalogRead adc;
String getData(){
String temp=String(bme.readTemperature()-CORRECT_TEMP);
String hum=String(bme.readHumidity());
String press=String(bme.readPressure()/100.0F);
String alt=String(bme.readAltitude(SEALEVELPRESSURE_HPA));
String actGlobalWeather = String(temp) + ";" + String(hum) + ";" + String(press) + ";" + String(alt) + "";
return actGlobalWeather;
}
void callback(char* topic, byte* message, unsigned int length) {
Serial.print("Message arrived on topic: ");
Serial.print(topic);
Serial.print(". Message: ");
String messageTemp;
for (int i = 0; i < length; i++) {
Serial.print((char)message[i]);
messageTemp += (char)message[i];
}
Serial.println();
// Check if a message is received on the topic "rpi/broadcast"
if (String(topic) == topicSubscription) {
if(messageTemp == msgSubscription){
Serial.println("Action: send weather data to RPi.");
String sendData=getData();
Serial.println("Temperature; Humidity; Preassure; Altitude");
Serial.println("Measure data: " + sendData);
client.publish(topicPublish, sendData.c_str());
}
}
}
void connect_mqttServer() {
client.connect(clientID, mqtt_username, mqtt_password);
client.subscribe(topicSubscription);
Serial.println("Set subscription OK ...");
Serial.println(".Client connected:" + client.connected());
// Loop until we're reconnected
while (!client.connected()) {
//now attemt to connect to MQTT server
Serial.print("Attempting MQTT connection...");
// Attempt to connect
if (client.connect(clientID, mqtt_username, mqtt_password)) { // Change the name of client here if multiple ESP32 are connected
//attempt successful
Serial.println("connected");
// Subscribe to topics here
client.subscribe(topicSubscription);
}
else {
//attempt not successful
Serial.print("failed, rc=");
Serial.print(client.state());
Serial.println(" trying again in 2 seconds");
//blink_led(3,200); //blink LED three times (200ms on duration) to show that MQTT server connection attempt failed
// Wait 2 seconds before retrying
delay(2000);
}
}
}
void setup() {
Serial.begin(9600);
bool status = bme.begin(0x77); // OR 0x76 for left pad on board
if (!status) {
Serial.println("Could not find a valid BME280 sensor, check wiring or change I2C address!");
while (1);
}
// WiFi
Serial.print("Connecting to ");
Serial.println(ssid);
// Connect to the WiFi
WiFi.begin(ssid, wifi_password);
// Wait until the connection has been confirmed before continuing
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}
// Debugging - Output the IP Address of the ESP
Serial.println("WiFi connected");
Serial.print("IP address: ");
Serial.println(WiFi.localIP());
client.setServer(mqtt_server, mqtt_server_port);
client.setCallback(callback);
}
void loop() {
if (!client.connected()) {
connect_mqttServer();
}
client.loop();
long now = millis();
if (now - lastMsg > 4000) {
lastMsg = now;
}
}
Ve funkci callback se skládá zpráva odeslaná z RPi a testuje se její znění. Pokud se shoduje, tak dojde k odeslání dat do RPi.
Pokud bychom chtěli odesílat data kontinuálně, stačí odkomentovat ve smyčce
řádek loop
. client.publish(topicPublish, getData().c_str()); //topic name (to which this ESP32 publishes its data)
